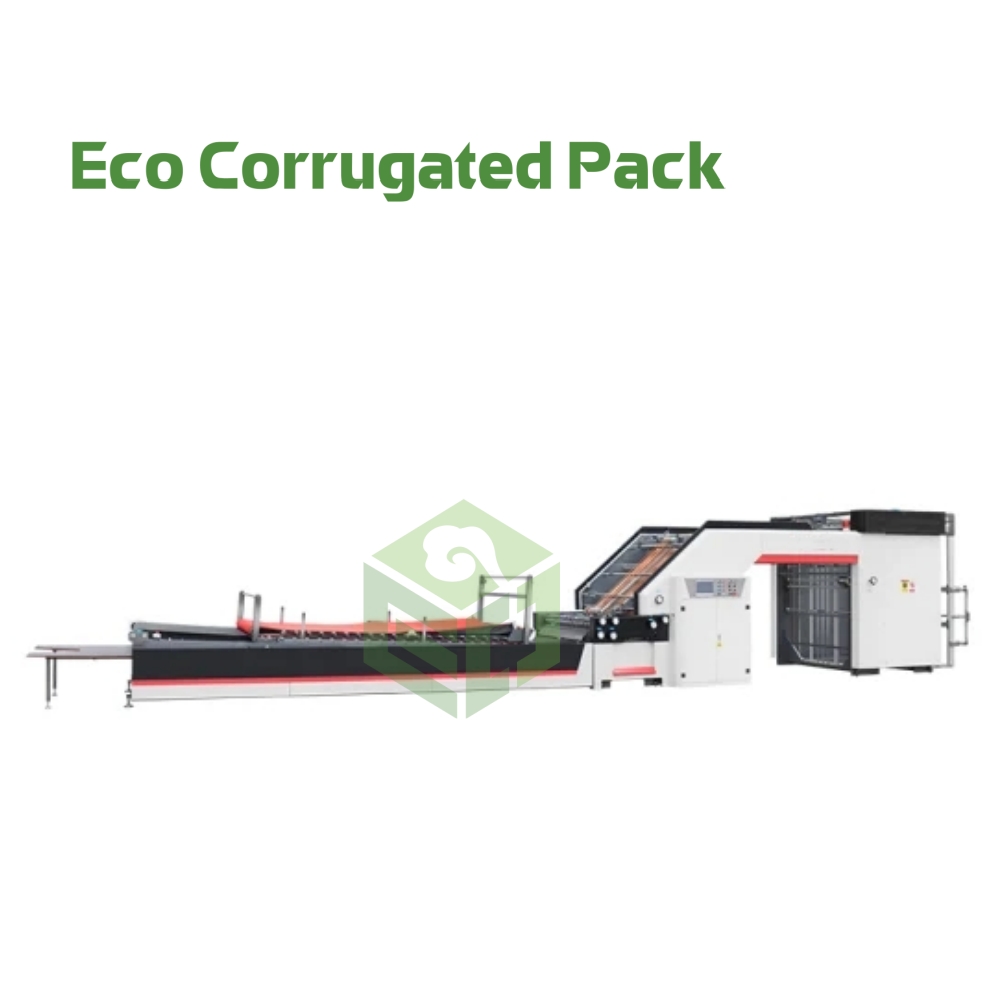

High Speed 3 Ply Automatic Flute Laminator And Automatic Stacker

This high speed intelligent flute laminator uses a motion control system and servo correction. It uses multiple sets of photoelectric sensors to sense the relative position of the bottom paper and controls the servo motors on both sides.

Description




Eco Corrugated Pack - Embrace Change, Embrace Green!

Mission:
We are dedicated to providing eco-smart eco-friendly printing and packaging machinery solutions, with the goal of becoming a pioneer in sustainable development. We firmly believe that taking care of the environment is the duty of every business, and through our efforts, we will work together to protect our magnificent Earth.

Eco Corrugated Pack provides custom printing and packaging machine solutions to high-quality corrugated carton box factories and offset printing carton manufacturers in the Middle East.

Eco Corrugated Pack assist you in building an eco-smart and eco-friendly factory.

ecocorrugated@gmail.com

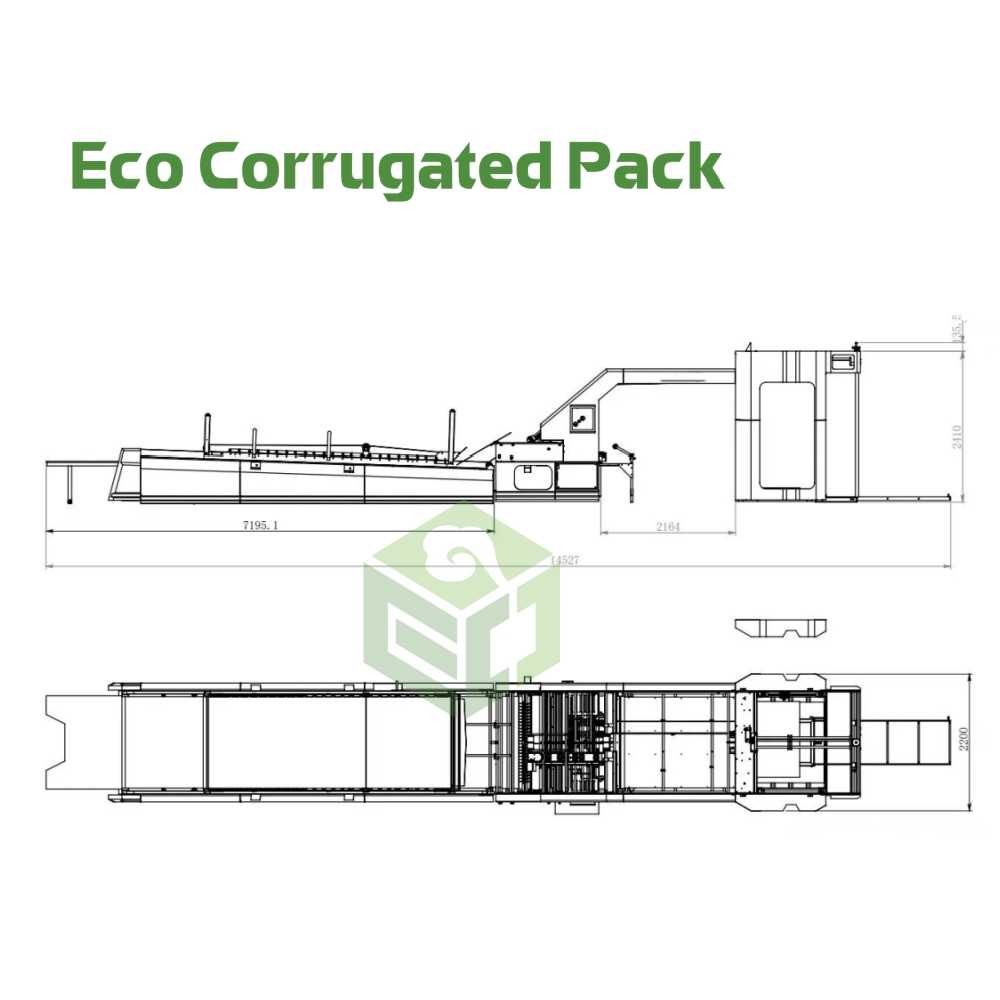

High Speed 3 Ply Automatic Flute Laminator Machine Technical


Model    ECO-1450G ECO-1650G

Max. Sheet Size (W*L)

1450mm*1250mm  1650mm*1450mm

Min. Sheet Size (W*L)

400mm*400mm                                                 400mm*400mm
Top Paper Thickness 140~800g/m² 140~800g/m²
Bottom Sheet Thickness                           Corrugated: 0.5-10mm(B,A,AB,E flute, etc.)
Paper: > 350g
Laminating Accuracy Corrugated:±1mm
Paper:±0.5mm
Max. Speed 15000p/h
9000m/h
15000p/h
9000m/h
Power 20KW 22KW
Dimension L*W*H 13.5m*2.4m*2.4m 14.5m*2.6m*2.6m
Height of Bottom Paper 400mm 400mm
Height of Top Paper 1800mm 1500mm
Machine Weight 6200KG 7000KG

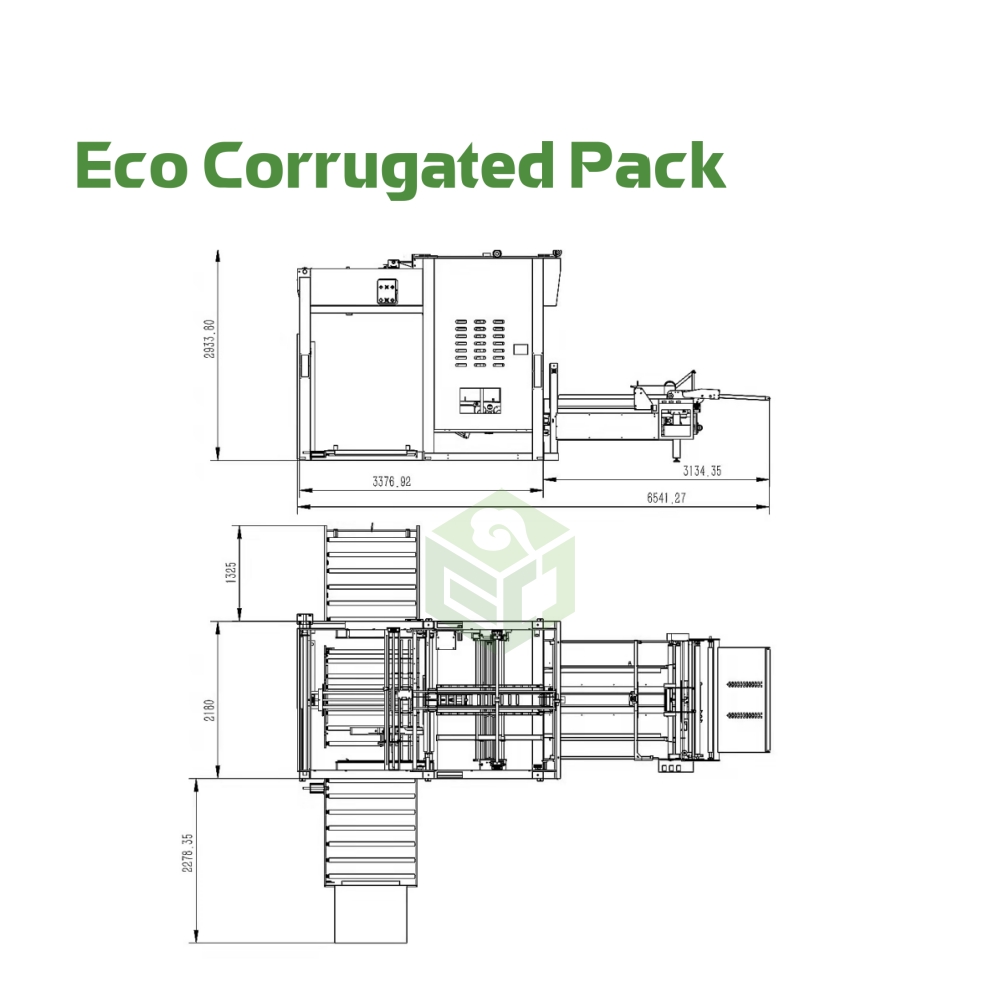

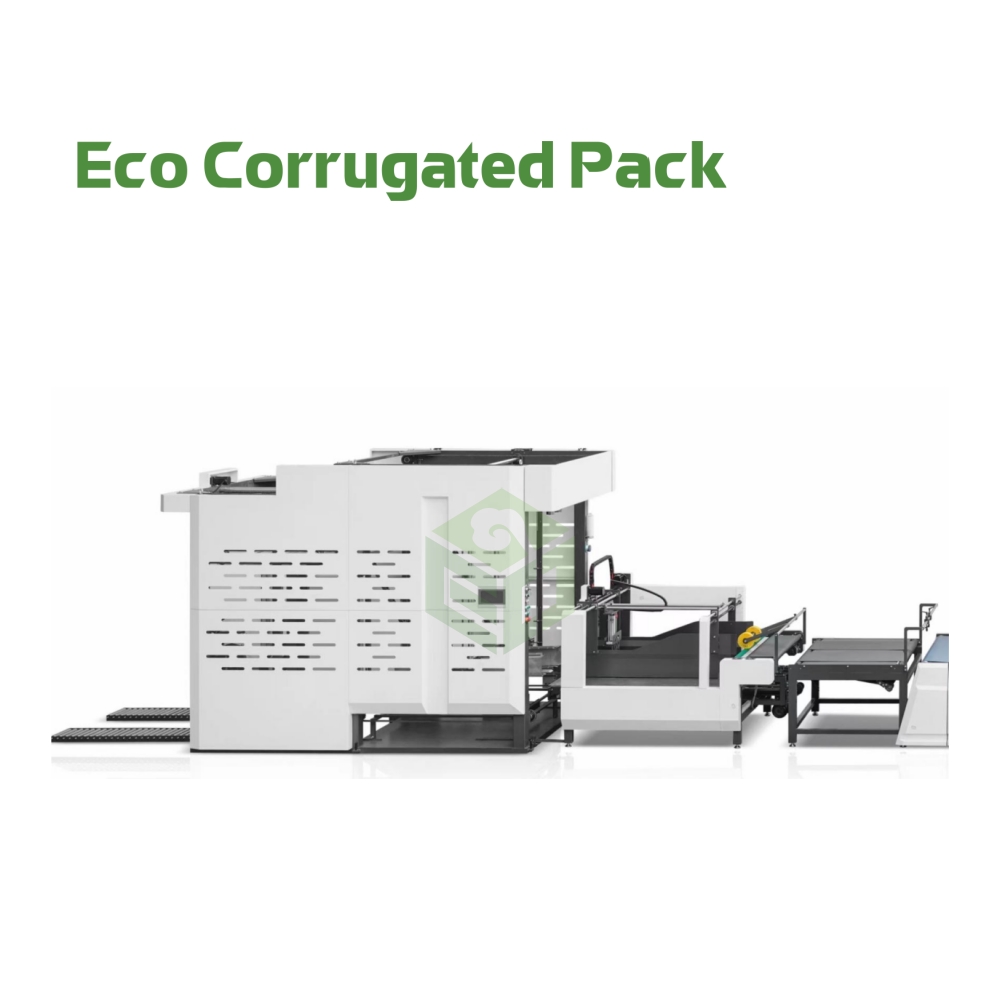

Automatic Stacker


Model

ECO-1450                                                          ECO-1650
Max. Sheet Size (W*L) 1450mm*1450mm 1650mm*1600mm
Min. Sheet Size (W*L) 450mm*400mm 450mm*400mm
Power 6.7kw 7.5kw
Delivery Speed 15000 pcs/h 15000 pcs/h
Dimension 8040 x 2680 x 3000mm 10040 x2612 x3000 mm
Weight 4200KG 4800KG
