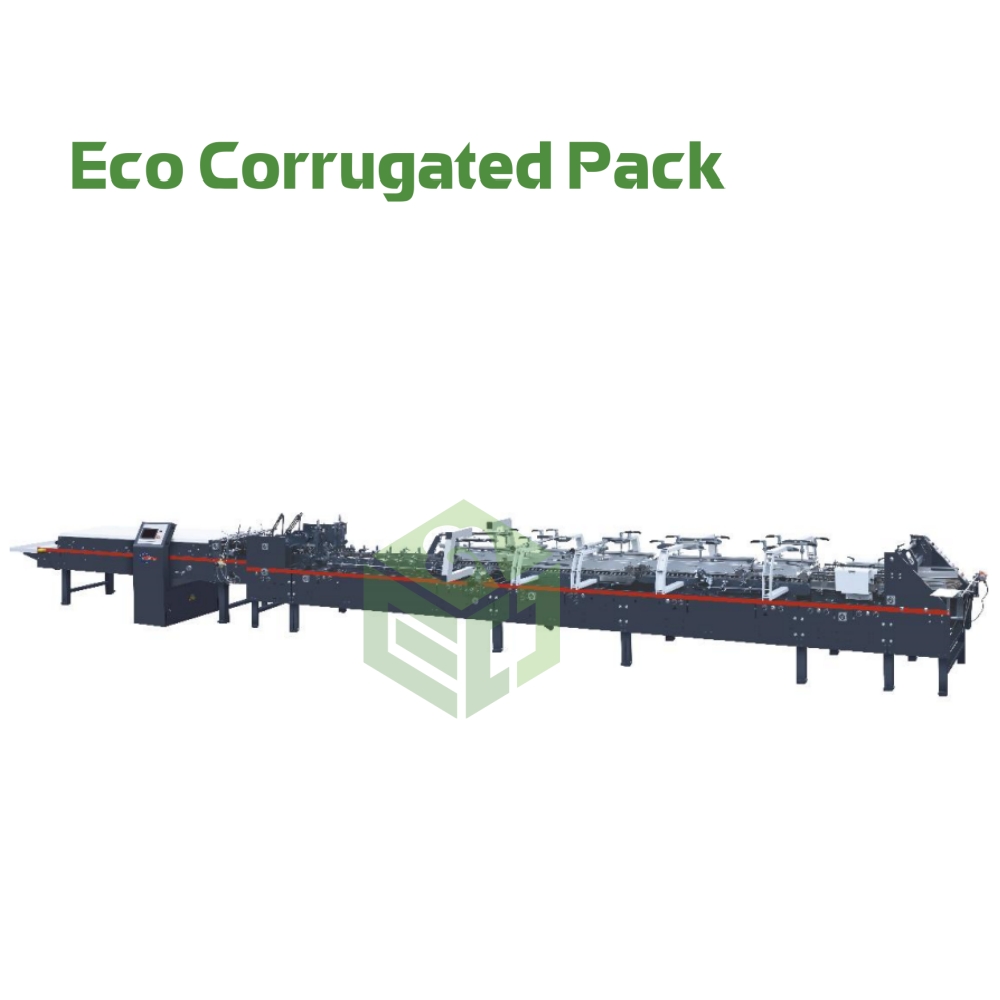

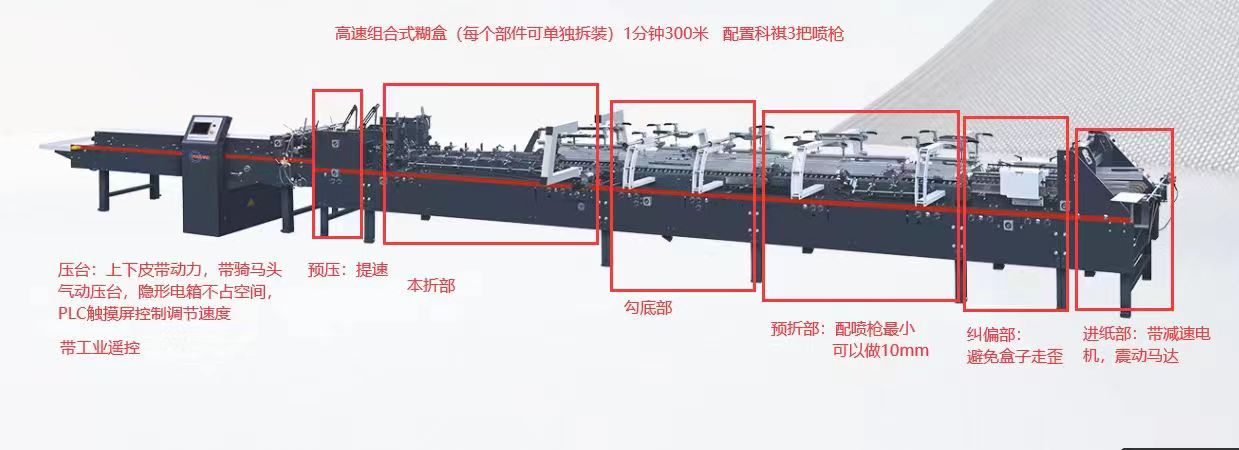

Automatic Folder Gluer Machine

Eco Corrugated Pack - Embrace Change, Embrace Green!

Mission:
We are dedicated to providing eco-smart eco-friendly printing and packaging machinery solutions, with the goal of becoming a pioneer in sustainable development. We firmly believe that taking care of the environment is the duty of every business, and through our efforts, we will work together to protect our magnificent Earth.

Eco Corrugated Pack provides custom printing and packaging machine solutions to high-quality corrugated carton box factories and offset printing carton manufacturers in the Middle East.

Eco Corrugated Pack assist you in building an eco-smart and eco-friendly factory.
ecocorrugated@gmail.com

---

Name	Automatic Folder Gluer
Model	ECO-1100
Paper Material	210-600g/m² 210-600g/m² paperboard.Compatible with E/F corrugated
Max. Liner speed	0-300m/min 0-300m/min continuous adjustment
Feeding way	Automatic feeding

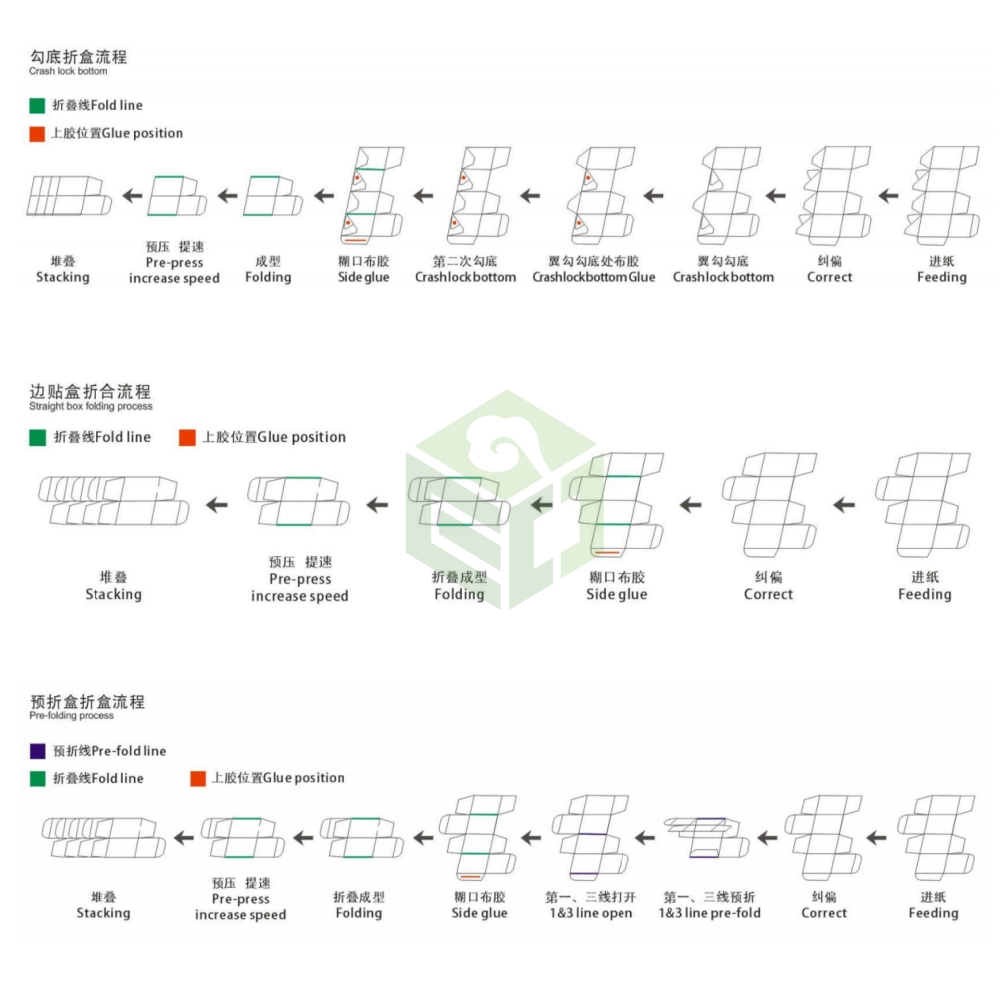

Way of folding	Single side gluing or both side gluing.Pre-folding.Crash lockbottom.4&6 Corner
Glue Material	Cold glue
Electric power	25KW AC3 PH380V
Weight	3000KG
Over dimension	16*2.7*1.9（M）

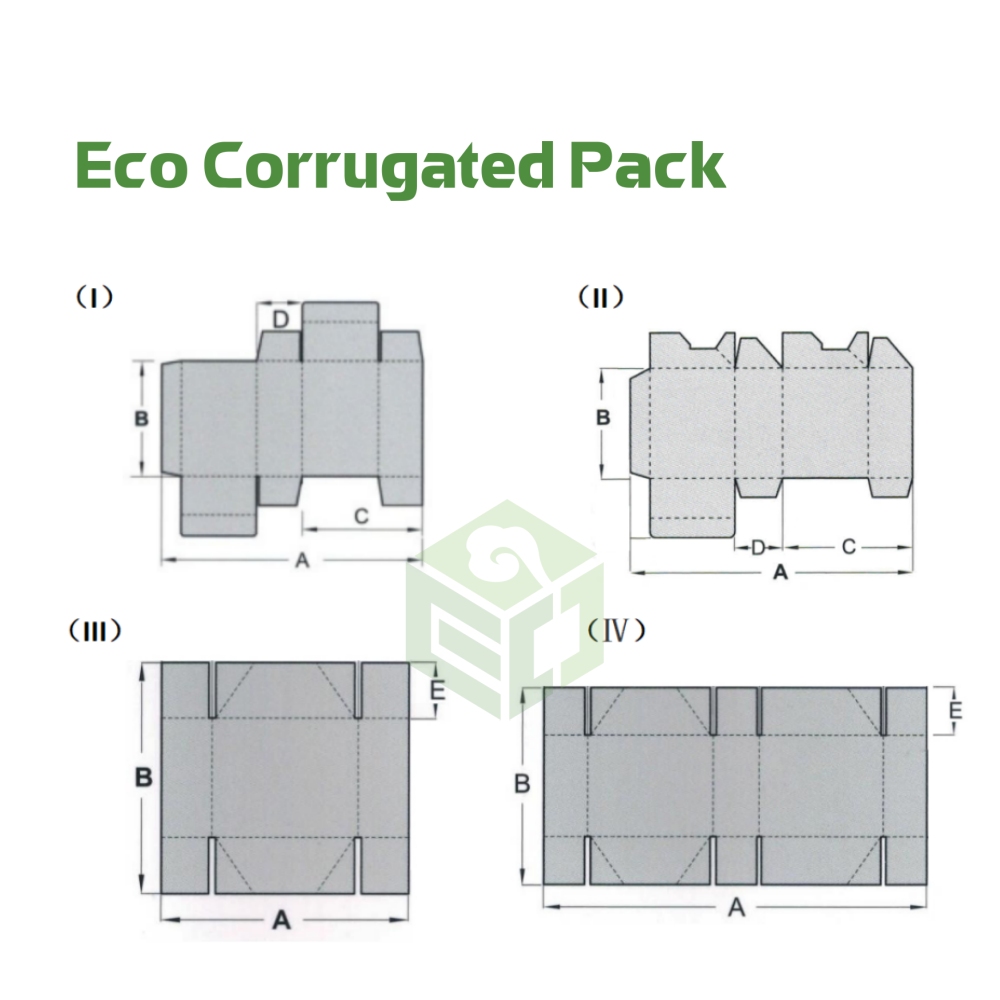

Main Technical Datas                                                                     Unit: mm
Model	Box type	A	B	C (min)	D (min)
	Side-glue box  （I）	130-800	60-700	60	10
	Pre-fold box  （I）	170-700	60-700	80	10
	Crash lock bottom box  （II）	180-700	100-700	90	40
	4 corner box  （Ⅲ）	160-700	180-700	E：30-100
	6 corner box  （Ⅳ）	250-700	180-700	E：30-100
