Eco Corrugated Pack - Embrace Change, Embrace Green!
Mission:
We are dedicated to providing eco-smart eco-friendly printing and packaging machinery solutions, with the goal of becoming a pioneer in sustainable development. We firmly believe that taking care of the environment is the duty of every business, and through our efforts, we will work together to protect our magnificent Earth.
Eco Corrugated Pack provides custom printing and packaging machine solutions to high-quality corrugated carton box factories and offset printing carton manufacturers in the Middle East.
Eco Corrugated Pack assist you in building an eco-smart and eco-friendly factory.
ecocorrugated@gmail.com

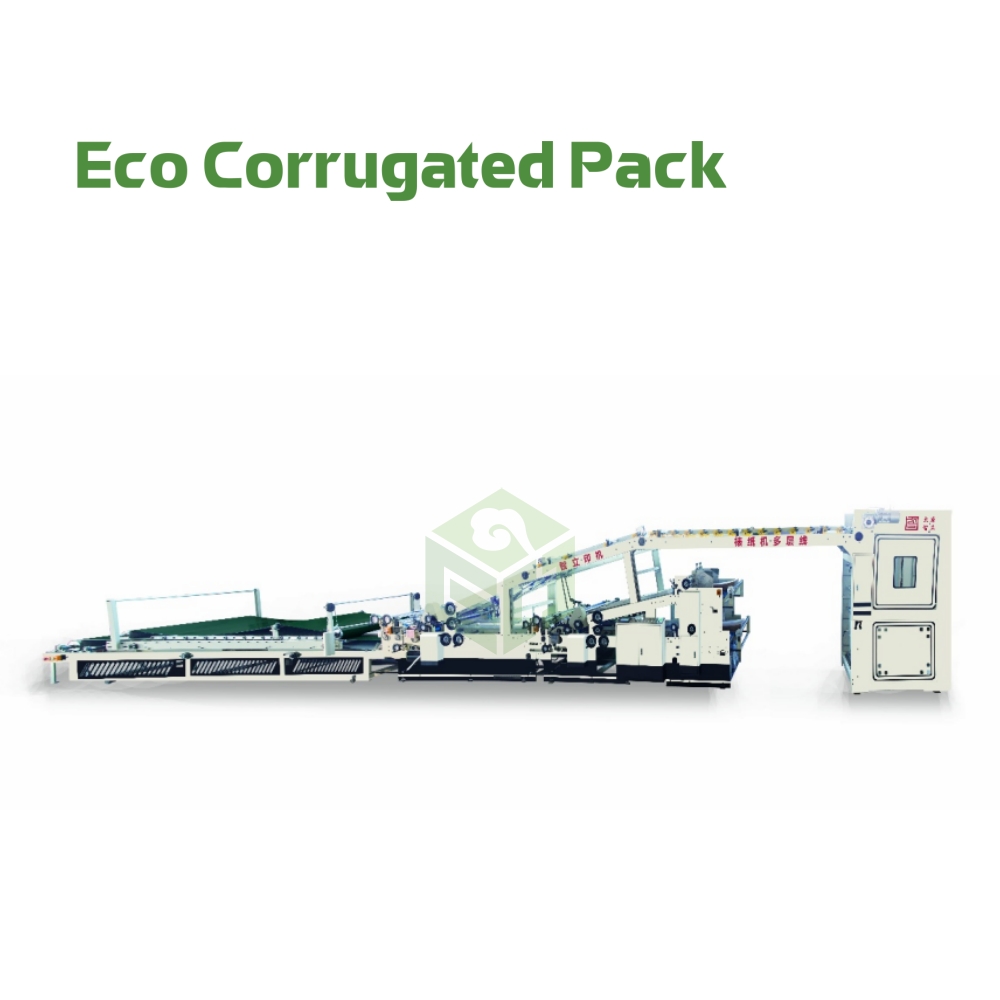

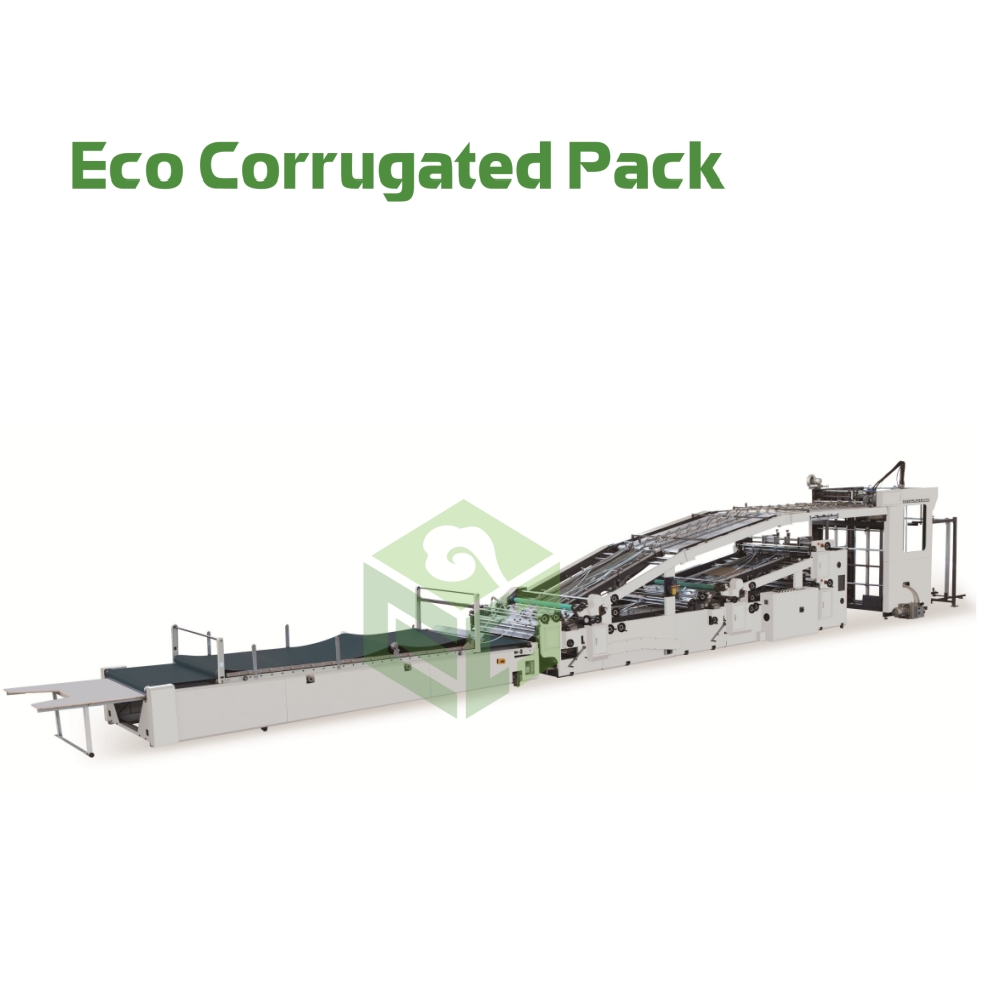

Automatic 3+2 Ply Cardboard Flute Laminating Machine
One laminator for versatile jobs, high efficient, money saving, labor saving, labor saving, acceptable tolerance.
Specially laminate and glue combination of two corrugated boards and any type of upper paper or board together.
Three feeders are designed to make strong 5 ply boards, one top feeder for printed cardboard or paper, two bottom feeders are for different combination of corrugated boards,such as A+A,A+B,A+E,E+B or simple lamination of top paper and one bottom corrugated board.
Furthermore, two bottom corrugated boards are to be laminated into 4ply corrugated boards.
Specifications
|
Automatic Flute Laminating 3+2 Layer Model |
ECO-1450 |
ECO-1650 |
|
Max.Sheet(WxL) |
1450x1200mm |
1650x1450mm |
|
Min.Sheet(WxL) |
450mmx450mm |
450mmx450mm |
|
Thickness of Upper Paper |
150~800g/m2 |
150~800g/m2 |
|
Thickness of Bottom Paper |
0.5~10mm |
0.5~10mm |
|
Machine Speed |
6000pcs/min |
6000pcs/min |
|
Accuracy |
±2.5mm/m2 |
±2.5mm/m2 |
|
Machine Space |
17336Lx2650Wx2600H |
17336Lx2650Wx2600H |
|
Power |
25KW |
30KW |
|
Weights |
11300KG |
12300KG |
