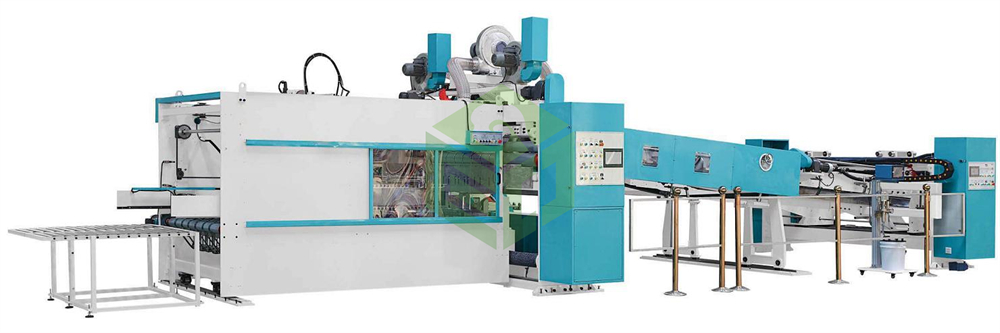

Vacuum Flexo Folder Gluer Inline, Casemaker, Boxmaker Inline

Eco Corrugated Pack - Embrace Change, Embrace Green! Contact us now WhatsApp: +8616630131631, Email: ecocorrugated@gmail.com. Get information on packaging industry development trends in the next 10 years.

Description




Eco Corrugated Pack - Embrace Change, Embrace Green!

Mission:
We are dedicated to providing eco-smart eco-friendly printing and packaging machinery solutions, with the goal of becoming a pioneer in sustainable development. We firmly believe that taking care of the environment is the duty of every business, and through our efforts, we will work together to protect our magnificent Earth.

Eco Corrugated Pack provides custom printing and packaging machine solutions to high-quality corrugated carton box factories and offset printing carton manufacturers in the Middle East.

Eco Corrugated Pack assist you in building an eco-smart and eco-friendly factory.

ecocorrugated@gmail.com

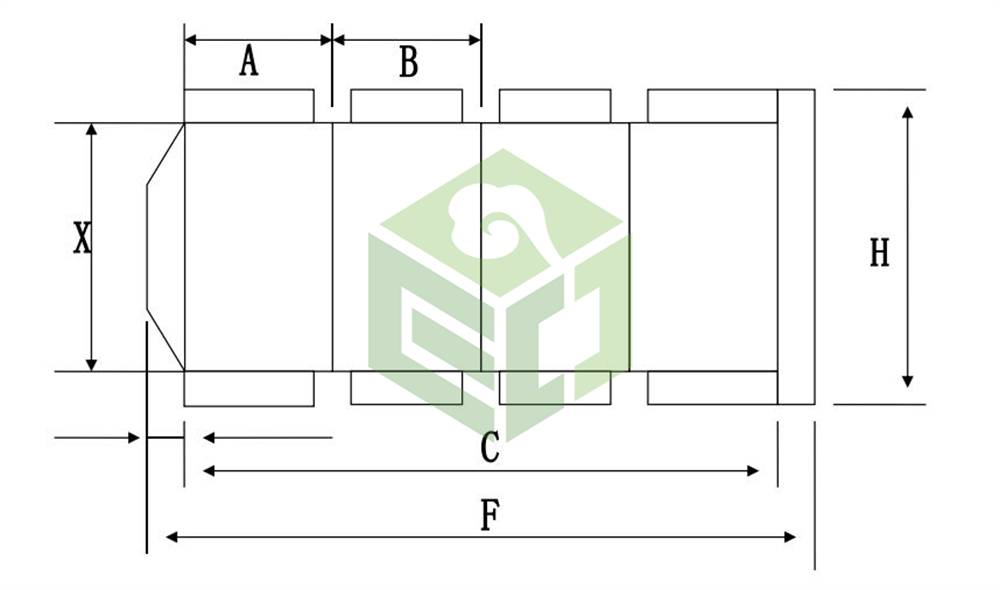

Model
925FFG
1228FFG
A

Max
1000
1100
Min
150
150
B
Max
1000
1100
Min
150
150
A+B
Min
300
300
C
Max
2420
2720
Min
620
650
F
Max
2500
2800
Min
660
690
X
Min
80
80
H
Max
900
1200
Min
300
350

Max print size
900X2500
1200X2800

Min print size
300X660
350X690

Servo QYT
8
8

Max speed
250pcs/min
250pcs/min

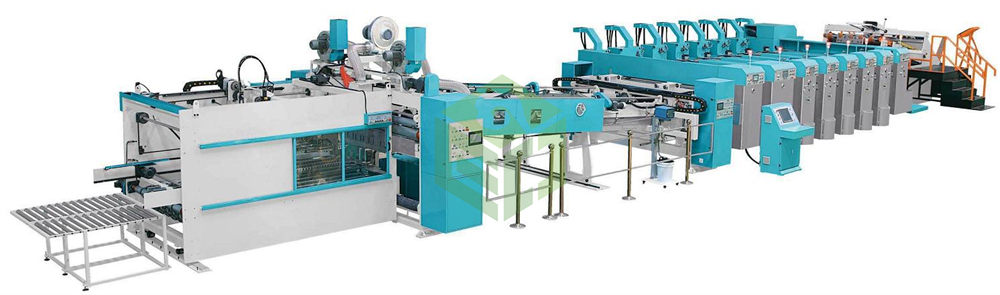

FULLY ATUOMATIC VACUUM TRANSPORT FLEXO FOLDER GLUER FFG BOX LINE

AUTO LEAD EDGE FEEDER 1 UNIT
AUTO TOP PRINTER   4 UNITS
VACUUM TRANSPORT 4 UNITS
CERAMIC ROLLER 4 UNITS
DOCOTR BLADE 4 UNITS
AUTO SLOTTER 1 UNIT
AUTO DIE CUTTER 1 UNIT
AUTO FOLDER GLUER INLINE 1 UNIT
AUTO SPRY GLUE SYSTEM 1 UNIT
SERVO COUNTER/ EJECTOR 1 UNIT
FULLY AUTO SET SYSTEM 1 UNIT



Lede Ege Feeder Unit

Lead-edge Feeding System
Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer.
Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
Slotting part is equipped with the interlock switch, to achieve theemergency stop, stop feeding or feeding.

Machine Separation & Combination
Button switches electrically control the separation and combinationof machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
Air pressure interlocks, lock securely, conveniently and accurately.
Machine clutch drive shaft is equipped with overload protection device.

Feeding Roller
Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.
According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm

Printer Unit

Printing Roller
Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
Installed with foot switch to control plate roller reversing, convenient change plate.
Auto-zero function, order memory.
Printing roller plate-change and fix-plate function.
Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

Pressing Roller
Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
Printing roller can be adjusted for a distance 0-12mm
Pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.

Anilox Roller
Ceramic anilox roller, brand HAILI
Anilox roller mesh:200-800 LPI

Doctor Blade
Guangzhou famous brand


Slotting Unit

6 shaft with rubber pre-creasing , creasing , slotter.
The above press round Urethane appearance package, will not damage the cardboard.
The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise.
Slotting phase and box height, computer and electric digital control.
There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.
Computer automatic arrange knife, can stockpile 999 memories

Die-cutting Unit

Rubber roller mechanical spiral commutation 40mm move about horizontal structure.
Die-cutter phase, computer and electric digital control.
Horizontal phase, computer and electric digital control, range ±5mm.
Rubber roller and die roller gap use computer and electric digital control.
Rubber roller hsiuping cutting structure, keep rubber surface roughness.
Stripping the belt longitudinal output,to easy clean waste paper.

Folder Gluer Inline

Independent drive with AC motor
Folding beams extremely strong and free of bending and vibration
Safety guards according to "CE" standards
Powered positioning folding and gluing beams
8 Servo motors for top belt, bottom belt, counter, ejector function
