ECO-1450G High Speed Automatic 3 Layer Corrugated Cardboard Flute Lamination Machine

Eco Corrugated Pack - Embrace Change, Embrace Green!

Mission:
We are dedicated to providing eco-smart eco-friendly printing and packaging machinery solutions, with the goal of becoming a pioneer in sustainable development. We firmly believe that taking care of the environment is the duty of every business, and through our efforts, we will work together to protect our magnificent Earth.

Eco Corrugated Pack provides custom printing and packaging machine solutions to high-quality corrugated carton box factories and offset printing carton manufacturers in the Middle East.

Eco Corrugated Pack assist you in building an eco-smart and eco-friendly factory.
ecocorrugated@gmail.com

---

High Speed Automatic 3 Layer Corrugated Cardboard Flute Lamination Machine

Model	ECO-1450G
Max. Sheet Size (W*L)	1450mm*1250mm
Min. Sheet Size (W*L)	400mm*400mm
Top paper thickness	140~800g/m²
Bottom sheet thickness	Corrugated: 0.5-10mm(B,A,AB,E flute, etc.) Paper: ＞ 350g
Laminating Accuracy	Corrugated:±1mm Paper:±0.5mm
Max. Speed	15000p/h 9000m/h
Power	20KW

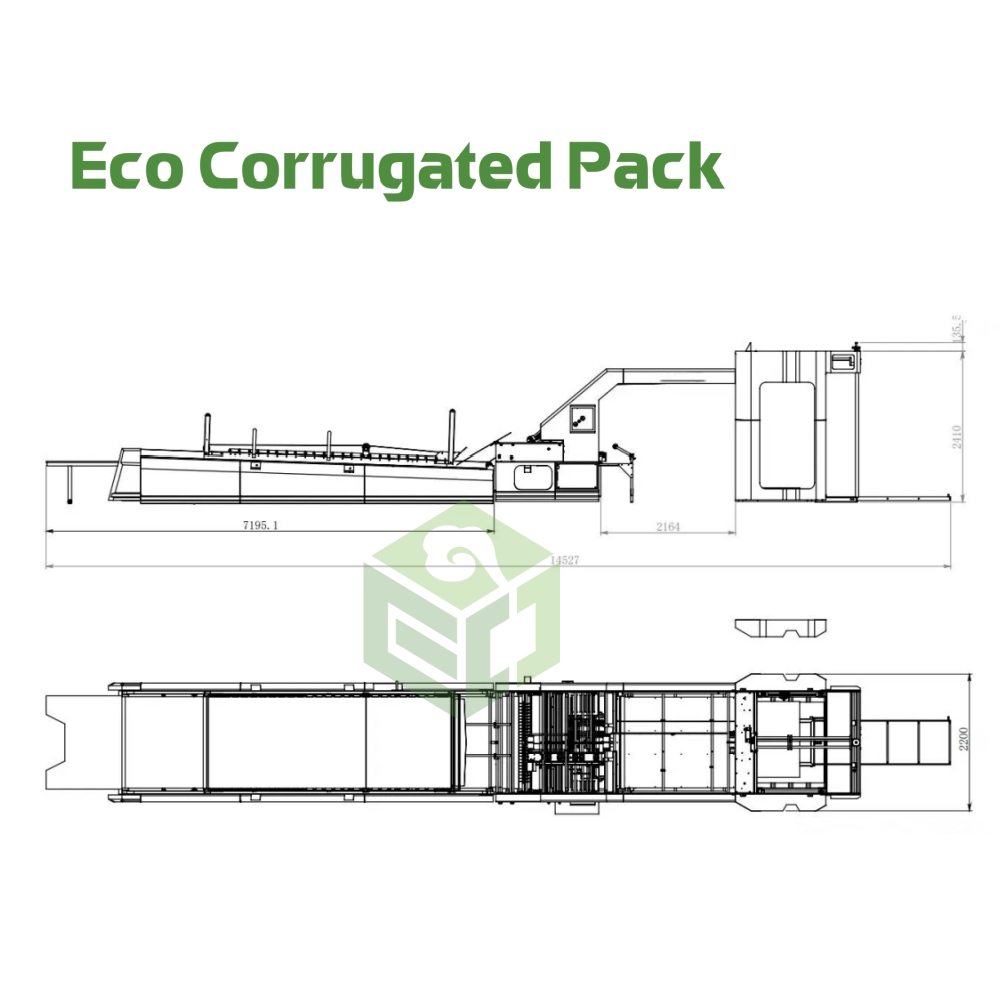

Dimension L*W*H	13.5m*2.4m*2.4m
Height of Bottom Paper	400mm
Height of Top Paper	1800mm
Machine weight	6200KG
