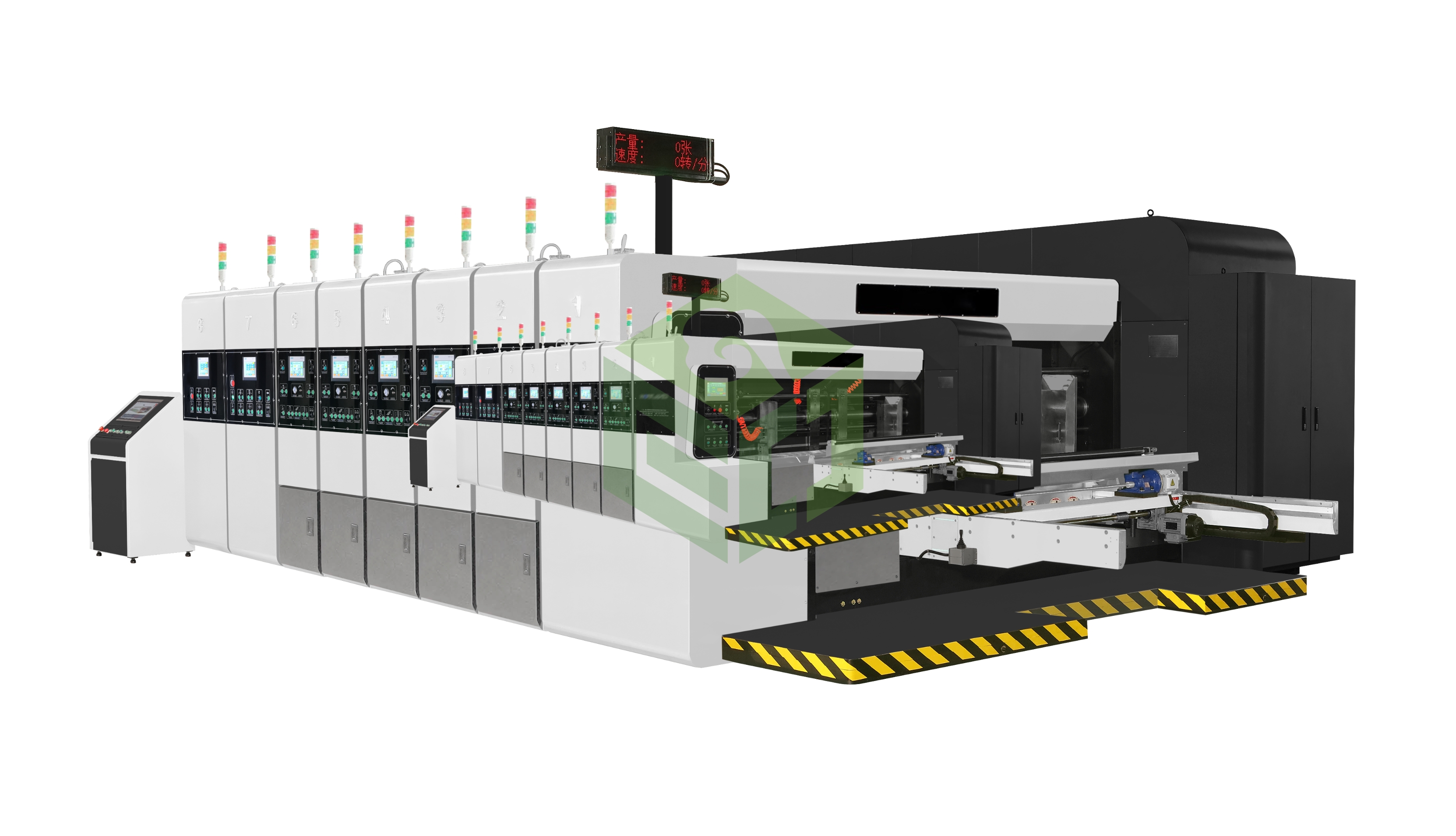

5+1 HD Fully Vacuum 1224 Printing Glazing Drying Die-Cutting Machine
Technical Parameters
|
TOPSPEED1224 |
|
|
Mechanical maximum speed (sheets / min) |
200 |
|
Maximum feed width (mm) |
1200×2400 |
|
Minimum feed width (mm) |
350×600 |
|
Sheet feed (mm) |
1500×2400 |
|
Maximum printing format (mm) |
1200×2360 |
|
Standard plate thickness (mm) |
7.2 |
|
Minimum slot spacing (single axis) |
Positive knife (mm) |
170×170×170×170 |
|
Counter knife (mm) |
340×60×340×60 |
|
Maximum groove depth (mm) |
|
300 |
Machine Description
The whole process of adsorption 1224 HD 5+1 printing, drying, glazing, die-cutting machine adopts full computer control, equipped with independent operation console, which can perform remote network diagnosis, remote order reading and writing control, up to 200pcs/min.
The running speed can meet the needs of fast order production. The printing department equipped with the squeegee and ceramic anilox roller can meet the requirements of high-definition printing.The high stability of the equipment under high-speed operation can meet the requirements of high-quality operation.
The transmission roller with tapered transition to ensure the printing stability of the machine under high-speed operation, the gear teeth of high-quality alloy steel 20CrMnTi material are used to ensure the transmission stability of the equipment under high-speed operation.
The units equipped with automatic tracking can feed, print, glaze and bake. The dry and die-cutting positions are automatically tracked to ensure that there is no need to return to zero during the production process, and the plate change is fast, improving work efficiency.
Features
1. Man-machine interface operation, convenient and quick, with main control man-machine interface (12-inch touch screen), independent computer operation display, order memory function.
2. All drive rollers are made of high quality steel, hard chrome plated, surface ground, tapered transition, seamless steel tube for the roller body
3. The printing roller is the forging of the shaft head, the taper transition, and the movement balance correction is performed after all processing;
4. The transmission gear is made of high-quality alloy steel 20CrMnTi material, and the heat treatment Rockwell hardness is 58-62 degrees.
5. The whole machine is equipped with remote network diagnosis function, which can be remotely controlled and used;
6. Paper feeding, printing, slotting, die-cutting position automatic tracking, no need to return to zero, quick change plate.
7. All the bottom and bottom roller gap adjustments can be automatically completed after inputting data.
8. Each unit can be separated automatically, and the positioning position of the hanging plate can be easily changed.
9. Each unit wall (cylinder lock) is automatically separated.
10. The surface of the electric cabinet and the outer cover is dusted.
|
Paper Feeding |
|
1. |
Main motor |
55KW,frequency conversion |
1 |
Mengniu Motor |
|
2. |
Travel motor |
0.75KW, 1/80 gear motor |
1 |
Taiwan City State |
|
3. |
Vacuum fan |
7.5KW, frequency conversion |
1 |
Shandong Yixing |
|
4. |
Vacuum fan |
4KW |
1 |
Shandong Yexing |
|
5. |
Left and right side panel adjustment |
0.2KW, 1/30 gear motor |
2 |
Taiwan |
|
6. |
Front and rear adjustment of the tailgate |
0.37KW, 1/100 reduction motor |
1 |
Taiwan |
|
7. |
Rear baffle height adjustment |
0.09KW, 1/60 gear motor |
1 |
Taiwan |
|
8. |
Pull paper roller adjustment |
0.2KW, 1/1800 gear motor |
1 |
Taiwan |
|
9. |
Feed roller adjustment |
0.2KW, 1/1800 gear motor |
1 |
Taiwan |
|
10. |
Feed motor |
0.35kw servo motor |
3 |
Rexroth Germany |
|
Printer Unit |
|
1. |
Uniform motor motor |
0.75KW, 1/30 gear motor |
6 |
Shengbang |
|
2. |
Phase motor |
0.4KW, 1/24 brake motor |
5 |
Shengbang |
|
3. |
Plate traverse motor |
0.4KW, 1/100 gear motor |
5 |
Shengbang |
|
4. |
Net roller height adjustment |
0.2KW, 1/1800 gear motor |
5 |
Shengbang |
|
5. |
Press roller adjustment |
0.4KW, 1/1800 gear motor |
6 |
Shengbang |
|
Glazing Department |
|
1. |
Uniform motor motor |
0.75KW, 1/30 gear motor |
1 |
Shengbang |
|
2. |
Phase motor |
0.4KW, 1/24 brake motor |
1 |
Shengbang |
|
3. |
Plate traverse motor |
0.4KW, 1/100 gear motor |
1 |
Shengbang |
|
4. |
Net roller height adjustment |
0.2KW, 1/1800 gear motor |
1 |
Shengbang |
|
5. |
Press roller adjustment |
0.4KW, 1/1800 gear motor |
1 |
Shengbang |
|
The Drying Department |
|
1. |
Gap motor |
0.4kw, 1/1800 gear motor |
2 |
Shengbang |
|
Die cutting department |
|
1. |
Preload adjustment |
0.4kw, 1/1800 reduction motor |
1 |
Shengbang |
|
2. |
Pressure line adjustment |
0.4kw, 1/1800 speed reducer |
1 |
Shengbang |
|
3. |
Die cutting adjustment |
0.4kw, 1/1800 speed reducer |
1 |
Shengbang |
|
4. |
Transmission motor (phase) |
7.5kw, servo motor |
1 |
Rexroth Germany |
